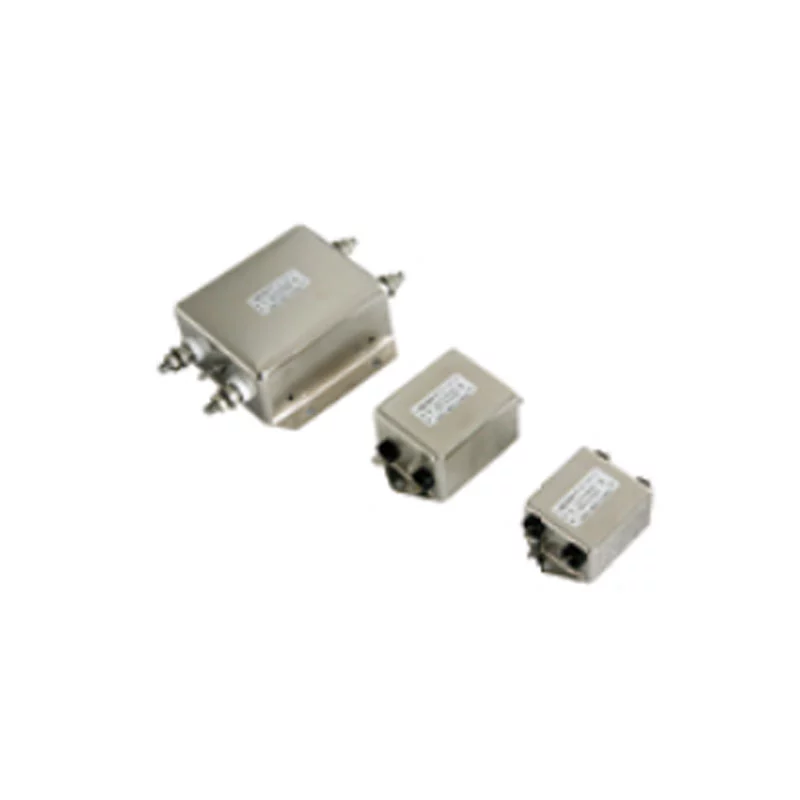

1.General purpose EMI filter with high attenuation performance.
| NO. | Title | Download Link | |
|---|---|---|---|
| 1. | Filter | Download |
1.General purpose EMI filter with high attenuation performance
2.High common-modeand differential-mode attenuation
3.Widely used in switching power, UPS, inverter, etc.
4.Exceed 50A must ensure that the ground is good, otherwise there is a risk of electric shock
5.Medical type filter suffx for A
Rated voltage: 250 VAC
Operating frequency: 0~60Hz
Rated current: 3A~200A
High potential test voltage : OP/N-E 2000VAC/2sec 0P-N 1100VDC/2sec
Temperature range: -25C~85C (25/85/21 )
Design corresponding to: IEC/EN 60939
Typical work frequency : 150kHz- 30MHz
Electrical and electronic equipment
Consumer goods
Household equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiring high filter performance
| Universal fiter | Medical fter | Rated current @40C [A] | Universal flter | Medical fiter | Power loss @25″C/50Hz [W] |
|---|---|---|---|---|---|
| RFD2B3N01 | RFD2B3N01A | 3 | 0.87 | 0.074 | 2.3 |
| RFD2B6N01 | RFD2B6N01A | 6 | 0.87 | 0.074 | 32 |
| RFD2B10N01 | RFD2B10N01A | 10 | 0.87 | 0.074 | 38 |
| RFD2B16N01 | RFD2B16N01A | 16 | 0.87 | 0.074 | 4.7 |
| RFD2B20N01 | RFD2B20N01A | 20 | 0.87 | 0.074 | 5.6 |
| RFD2B30N05 | RFD2B30N05A | 30 | 0.87 | 0.074 | 8.5 |
| RFD2B50N05 | RFD2B50N05A | 50 | 1.75 | 0.074 | 13.3 |
| RFD2B100N05 | RFD2B100N05A | 100 | 1.75 | 0.074 | 30.2 |
| RFD2B200N05 | RFD2B200N05A | 200 | 3.5 | 0.074 | 46.9 |
