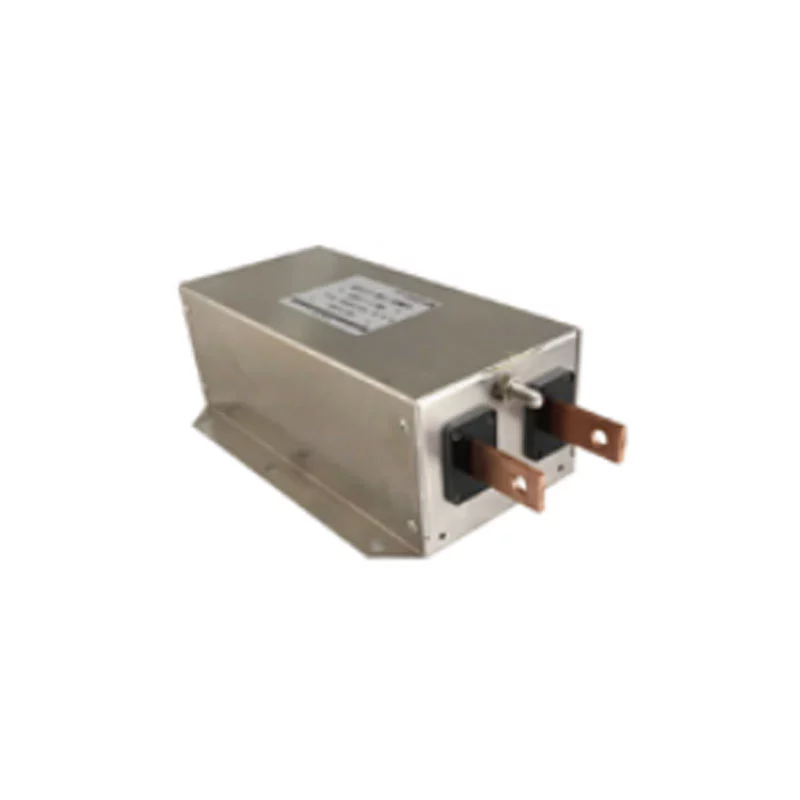

1.Reduces conducted emissions towards the solar panel, Helps to meet international EMC regulations for the entire PV system
| NO. | Title | Download Link | |
|---|---|---|---|
| 1. | Filter | Download |
1.Reduces conducted emissions towards the solar panel, Helps to meet international EMC
regulations for the entire PV system
2.Excellent capability to reject CM and DM noise
3.Reduces the probability of EMI radiation off the converter system.
4.Helps to prevent pre-mature panel aging, because of HF leakage currents
5.less than 100A filters, using solid safety connector, more than 150A filters, using copper bar.
Maximum continuous operating voltage : 1200VDC
Rated frequency: DC
Rated current: 25A-2300A@55 C
High potential test voltage : P-E 3600VDC/5sec P-P3000VDC/5sec
Temperature range: -25 C~100C (25/100/21 )
Design correspondingto : IEC/EN 60939
Typical work frequency : 1 50kHz~30MHz
Protection class: IP20(25A~100A) IP00(150A-2300A)
This series filters are primarily designed for PV and wind power inverters. However, they canpotentially also be used in other DC applications within published specifications, like UPS, DC motordrives,or DC quick chargers.
| Filter type | Rated current @40°C[A] | Driver power rating[KW] | Power loss @25°C/50Hz[W] | Connector type |
|---|---|---|---|---|
| SKD12B25DN10 | 25 | 10 | 8 | sald safety connecdor |
| SKD12B50DN35 | 50 | 20 | 17 | solid safety connector |
| SKD12B80DN35 | 80 | 30 | 18 | solid safety connecdor |
| SKD12B100DN35 | 100 | 40 | 22 | solld safety connector |
| SKD12B150DN99 | 150 | 60 | 31 | copper bar |
| SKD12B200DN99 | 200 | 80 | 36 | copper bar |
| SKD12B30DN99 | 300 | 120 | 14 | copper bar |
| SKD12B400DN99 | 400 | 150 | 16 | copper bar |
| SKD12B60DN99 | 600 | 250 | 29 | copper bar |
| SKD12B800DN99 | 800 | 350 | 26 | copper bar |
| SKD12B1000DN99 | 1000 | 400 | 40 | copper bar |
| SKD12B1500DN99 | 1500 | 500 | 45 | opper bar |
| SKD12B2300DN99 | 2300 | 800/1000 | 84 | copper bar |
