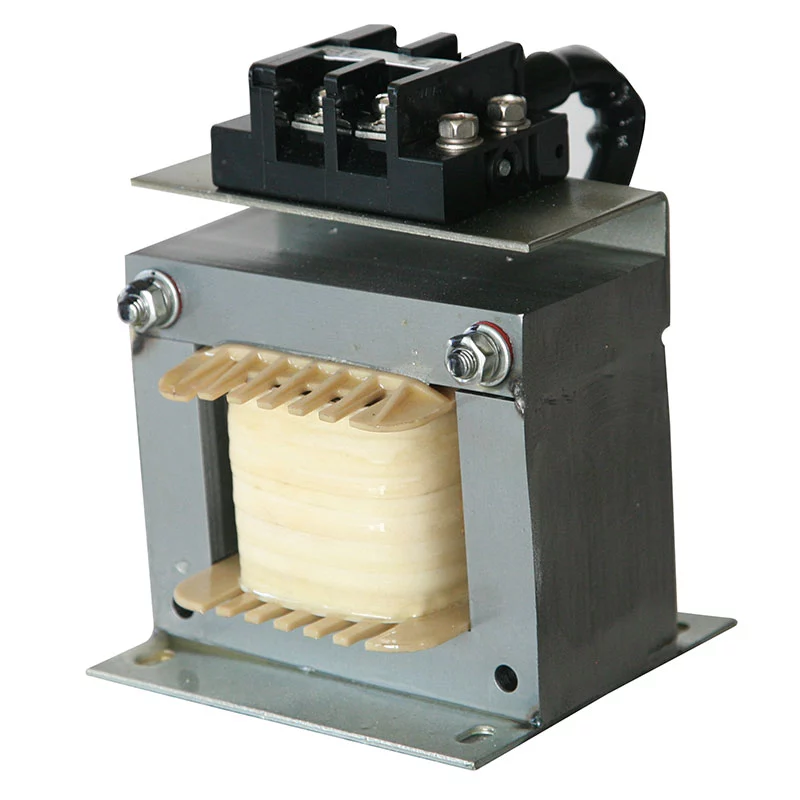

Product Introduction

DC smoothing reactor rectifier circuit being used to suppress ripple rectified pulsating
component and make rectified current continuously Improve the output waveform tributaries,
to ensure the normal operation of the DC devices.

Product Application

1.Suppress the waveform distortion of input current caused by capacitive filtering
2.Reduce and avoid overheat of capacity and rectifier bridge damage both of which arise form surge current
3.Improve power factor and reduce the DC busbar AC pulse.
4.Limit the instant change of the grid voltage
5.Work with capactor to suppress or filter the current ripple for eliminating .negative influence onload

Technical Specifications

1.Work voltage: 220VAC-1140VAC
2.Work frequency: 50/60Hz.
3.Work current: 3A-1600A
4.Insulation class: class F, H
5.Operation Environment:-10~…+45 ℃ ,rated value wont ′
1 ℃,the current will step down 2%
6.Protection class: IP00-IP22
7.Max Current: 1.5 × Rated current,continuous 60S
8:Noise: ≤ 65dB
9.Temperature Rise: ≤ 85K
10.Dielectric strength: Core Coil 3000VAC/50Hz/5mA/10s no electric arcing puncture (factory test)
11.Insulation Resistor: 1000VDC insulation resistance value ≥ 100MΩ
12.Under seal level 2000m
13.Running ambient temperature -25 ℃ ~ +45 ℃, comparative moisture not over 90%.
14.No hazardous gas,no inflammables and explosives
15.With well-ventilated condition,ventilation devices shall be mounted if installatioh in panels

Applicable Standards

IEC289:1987 Reactor
GB10229-88 Reactor(eqvlEC289: 1987)
JB9644-1999 Reactors used for semiconductor electrical driving

Product Size

Product Identification Code
