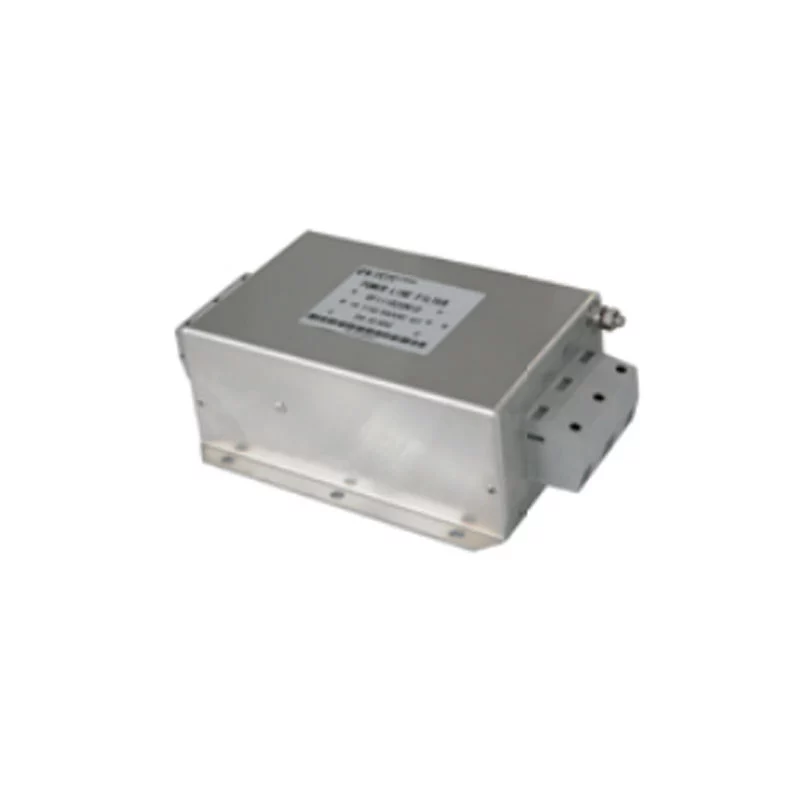

Product Introduction

1.Reducing the conducted emission from inverter to power network.
2.Improve the reliability of the whole system.
3.less than 100A filters, using solid safety connector, more than 200A filters, using copper bar
4.Low leakage current,Lack of a phase, The maximum leakage current is 13. 12mA (except P type).

Technical Data

1.Rated voltage: 690/380 VAC
2.Rated frequency: 50Hz
3.Rated current: 120A~ 1000A
4.High potential test voltage : P-E 2850VDC/60sec P-P 2850VDC/60sec
5.Temperature range: -25C -100C (25/100/21 )
6.Design correspondingto : IEC/EN 60939
7.Typical work frequency : 150kHz- 30MHz

Typical electrical schematic of input filter

Typical electrical schematic of output filter

Filter Selection Table

Product Size

Filter Input/output Connector Cross Sections
