| NO. | Title | Download Link |
|---|---|---|
| 1. | SAFESAVE SST-Nx+NS Series Soft starter catalog | Download Link |

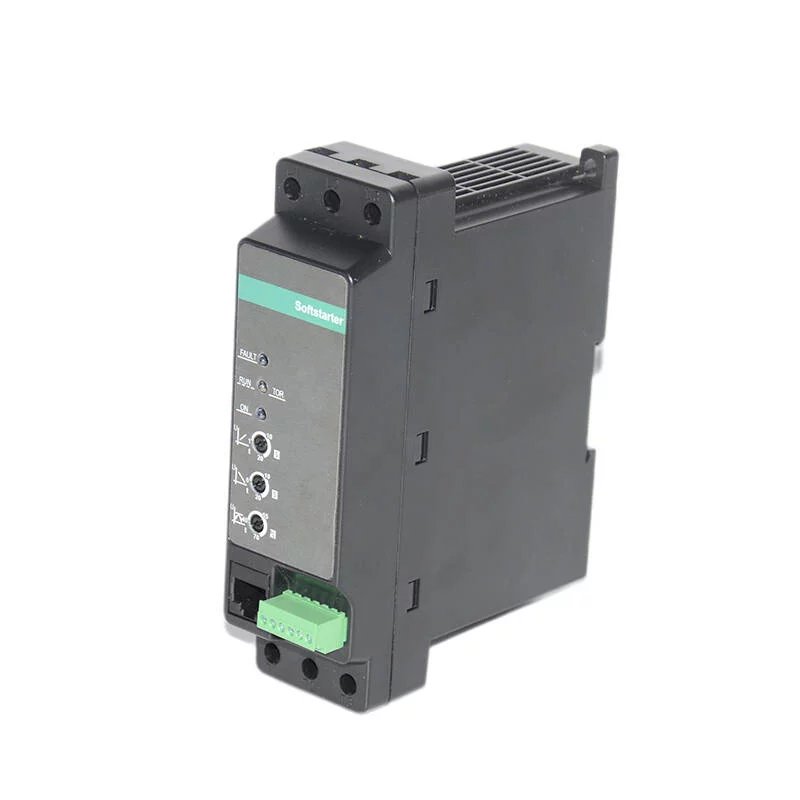

SST-NX is a compact soft starter developed based on two-phase thyristor voltage regulation control algorithm. It has the technical characteristics of small size, high integration, simple use and convenient deployment. As one of the company’s multiple soft starter product lines, the SST-NX series will solve application pain points such as cumbersome wiring of electrical equipment and inability to effectively arrange circuits due to compact space. It has unique advantages when applied to the electrical requirements of compact space low power consumption and low heating requirements, and rapid deployment.
| Standards compliant | GB/T14048.6-2016/EC60947-42~2011 | |
| Rated working voltage | 200~415V(-15%+10%) | |
| Maximum length between soft starter and cable | 300m | |
| Allowable ambient temperature | Runtime | 25°C to +60°C(Ambient temperature exceeds 40°C,for every 1°C increase, the soft-start rated current is reduced by 1%) |
| Storage | -40℃~+70℃ | |
| Protection class | Ip20 | |
| Rated frequency | 50/60Hz | |
| Allowable installation height | 5000 meters (the derating starts when the altitude is above 1000 meters, and the rated current of soft start is reduced by 5% for every additional 1000 meters) | |
| Start frequency | =20 times/hour (Class10 standard load) | |
1.Compact Design: Mini body carries robust soft starter functions.
2.Built-in bypass: customers don’t need to configure additional bypass contactors and the wiring is simpler and more convenient.
3.Protection functions :it has overload, under-load, overheating, phase loss, over-current protection functions as well as user-lock protection function.
4.Optional external panel: it provides convenient operation enabling users do personalized settings.
5.Voltage ramp start: compared with star delta starter, it realizes smoother start effect with the voltage ramp start function.

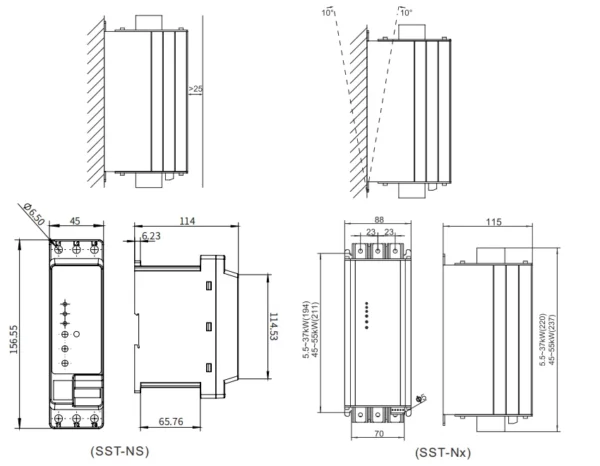

| Type | 380V/kW | Rated current(A) | Net weight(kg) |
| SST-Nx5R5 | 5.5 | 13 | 1.7 |
| SST-Nx7R5 | 7.5 | 17 | 1.7 |
| SST-Nx11 | 11 | 25 | 1.7 |
| SST-Nx15 | 15 | 32 | 1.7 |
| SST-Nx18 | 18.5 | 37 | 1.7 |
| SST-Nx22 | 22 | 45 | 1.7 |
| SST-Nx30 | 30 | 60 | 1.7 |
| SST-Nx30 | 37 | 75 | 1.7 |
| SST-Nx37 | 45 | 90 | 2.2 |
| SST-Nx45 | 55 | 110 | 2.2 |
| Type | 208V-240V/kW | 380-460V/kW | Rated current(A) |
| SST-NS1R5 | 0.75 | 1.5 | 3.9 |
| SST-NS3 | 1.5 | 3 | 6.8 |
| SST-NS4 | 2.2 | 4 | 9 |
| SST-NS5R5 | 3 | 5.5 | 12 |
| SST-NS7R5 | 4 | 7.5 | 16 |
| SST-NS11 | 5.5 | 11 | 25 |
| Model | Rated Power | Main Circuit Diameter | Main circuit tightening torque |
Control circuit Diameter | Tightening Torque control circuit |
| kW | GB Copper Core(mm ²) | Lbf/inch | mm² | Lbf/inch | |
| SST-Nx5R5 | 5.5 | 2.5 | 10.6~13 | 0.64~1 | 2~2.2 |
| SST-Nx7R5 | 7.5 | 2.5 | |||
| SST-Nx11 | 11 | 4 | |||
| SST-Nx15 | 15 | 6 | |||
| SST-Nx18 | 18.5 | 10 | |||
| SST-Nx22 | 22 | 10 | |||
| SST-Nx30 | 30 | 16 | |||
| SST-Nx37 | 37 | 25 | |||
| SST-Nx45 | 45 | 35 | 18~22 | ||
| SST-Nx55 | 55 | 40 |

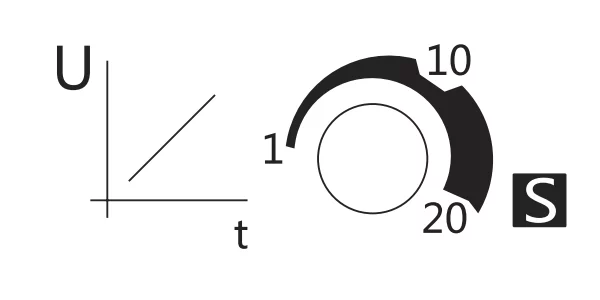

Knob of soft starting time: adjust soft starting time of soft starter and range is 1-20s.The longer the time setting, the more gentle the soft starting process, which is helpful to reduce the impact on power grid.

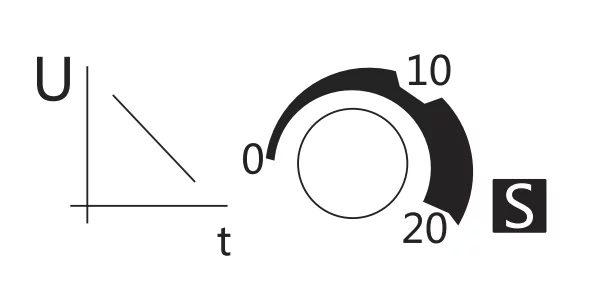

Knob of soft stopping time: adjust soft stopping time of soft starter and range is o-2oS.In some application occasions of water pump, soft stopping function can effectively avoid “water hammer effect” generated by the halt of water pump. When the knob is adjusted to be 0s, it indicates that the stalling way of motor is free stalling, which will stop output immediately after soft starting.

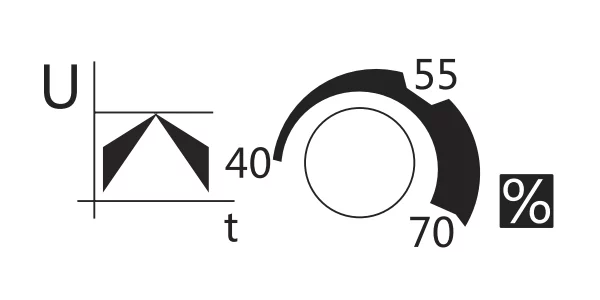

Knob of initial voitage: adjust initial voltage of soft starter and range is 40%~70%.When the motor starts, it needs to overcome the friction under stationary state. Properly increasing the initial voltage can obtain larger starting torque. The users should refer to actual load condition to coordinate starting and stopping time, thus obtaining the best effect of smooth starting.

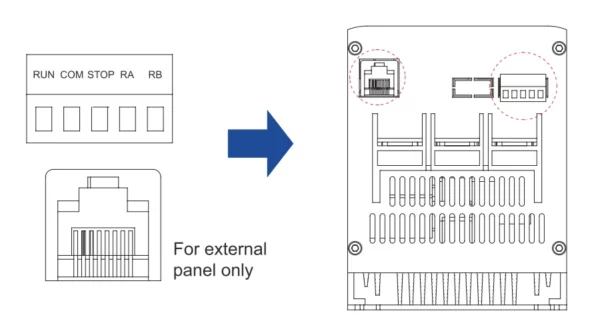

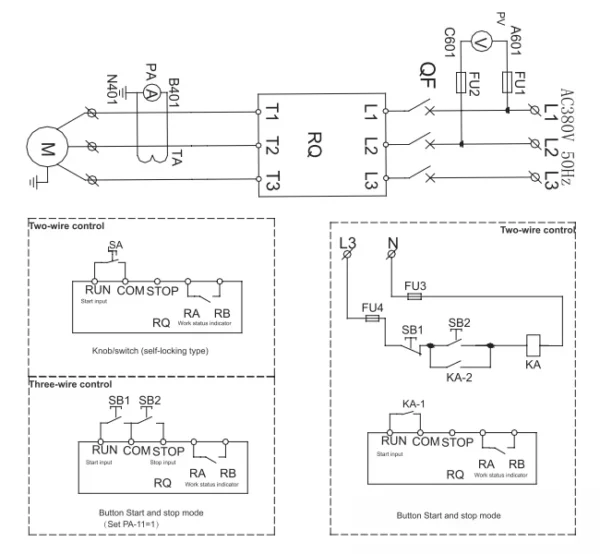

| Terminal Marking | Terminal Name | Function |
| L1/L2/L3 | Mains input of major loop | Connect three-phase source |
| T1/T2/T3 | Output connection of soft start | Connect three-phase motor |

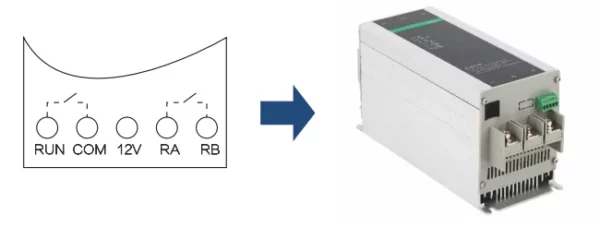

| Terminal Marking | Terminal Name | Function |
| RUN | Enable input | When RUN and COM are closed, the motor starts to run; when disconnected, the motor decelerates and stops (only two-wire control (default); if necessary, please contact the manufacturer |
| COM | Common port | For Run and Stop |
| STOP | Stop input | The motor stops when STOP and COM are closed (only three- wire control) |
| RA RB | Indication of working status |
Working status: relay output, normally open contact, closed during operation, open during shutdown or failure, relay capacity 250VIAC 0.3A |
This parameter is optional (not included in standard products).
It is connected through an RJ45 port (using a network cable).
If necessary, please contact the manufacturer.

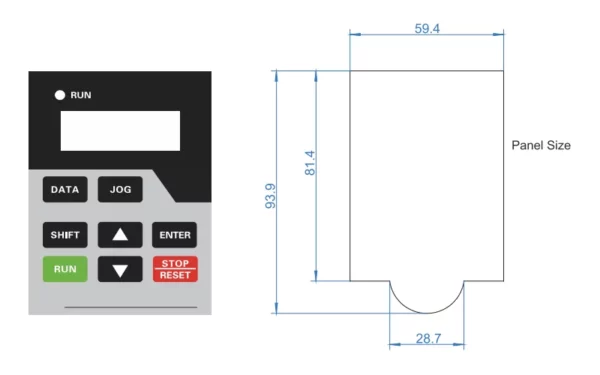

| Button | Name | Function |
| DATA | Programming Button |
Enter or exit the first level menu |
| JOG | Jog Button | Jog running motor (for testing only) |
| ▲ | Increment | Increment of data or function code |
| ▼ | Decrement | Decrement of data or function code |
| SHIFT | Shift | In the stop and running display interface, the display parameters can be selected cyclically; when changing the parameters, the modification position can be selected |
| ENTER | Enter | Enter the menu screen step by step, and set the parameters to confirm |
| RUN | Run | In the keyboard operation mode, used for running operation |
| STOP/RESET | Stop/Reset | When running, this button can be used to stop running operation; in fault alarm state; used to reset operation |
